- 【Widely Used】: Suitable for RC Off-road Vehicle, Crawler, Mechanical Arms, Robots, Remote Control Boat & Giant Scale Aircraft etc.
- 【Great Heavy-Duty Servo】: Amazing Torque & Fast Performance, Perfect for Heavy-duty RC Vehicle, Maximum Torque Can Up to 39kg.cm(541.6oz-in),Speed sec/60°:[email protected]
- 【Reliable Quality】: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
- 【Best Upgrade for your RC Rigs】: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation.Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off, Perfect for Robot Joint Activities. Up to 45mm Long Wire. Free 25T Servo Horn and Accessories
- 【Satisfied Customer Service】: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.
Electrical Specification：
Operating voltage range: 5-8.4 Volts
Operating speed at no load ( 5V ): 0.11 sec/60°
Operating speed at no load ( 7.4V ): 0.075 sec/60°
Operating speed at no load ( 8.4V ): 0.065 sec/60°
Stall torque at locked ( 5V ): 26kg.cm(361oz-in)
Stall torque at locked ( 7.4V ): 35kg.cm(486oz-in)
Stall torque at locked ( 8.4V ): 39kg.cm(541.6oz-in)
Stall current at locked ( 5V ): 3.5A
Stall current at locked ( 7.4V ): 5.2A
Stall current at locked ( 8.4V ): 5.8A
Idle current at stopped (5/7.4/8.4V): 5mA
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 270° (when 500-2500μsec)
Dead band width: 2μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500μsec)
Product Specification:
Suitable for: for 1/8 1/10 1/12 Scale RC Cars, Trucks
Motor Type：Coreless Motor
Gear Type: Stainless Steel
Spline:25 Tooth
Gear ratio: 195
Bearing：Double Bearing
Waterproof Performance：IP66
Connector Wire: 17.7in (450mm)
Size: 1.57*0.79*1.59inch（40 * 20 * 38.5mm）
Weight: 2.11oz (60g)
CE /RoHs: Yes
Apply Environmental Conditon:
Storage Temperature Range:-30°C~80°C
Operating Temperature Range:-15°C~70°C
Packing List:

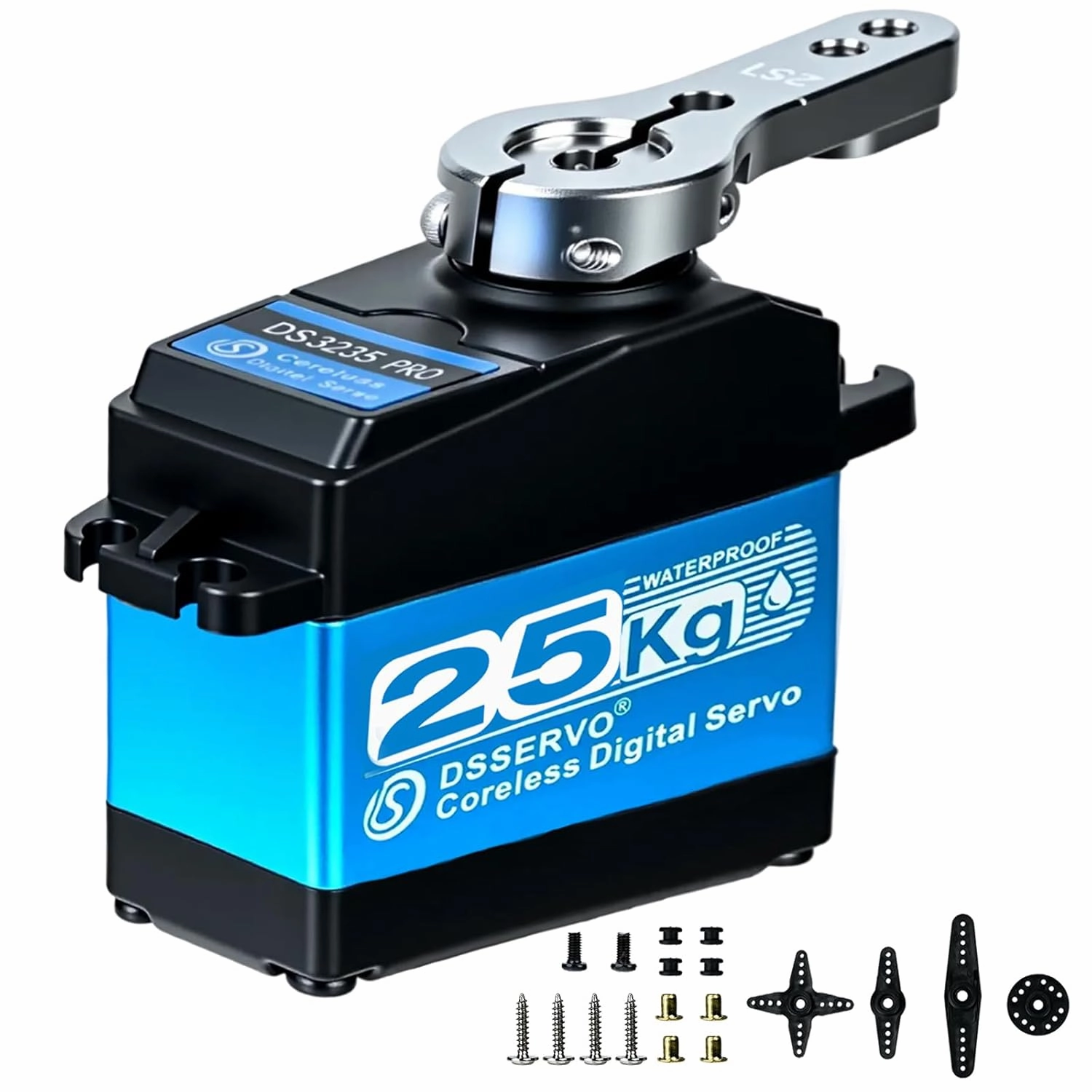

1 x DS3225 PRO Servo (270°)
1 x 25T Adjustable Metal Servo Arm
1 x Accessories Set (As Shown on The Picture)
- Package Dimensions : 3.31 x 2.52 x 0.79 inches; 2.89 ounces
- Manufacturer recommended age : 12 years and up
- Date First Available : December 18, 2024
- Manufacturer : ANNIMOS
- Country of Origin : China
