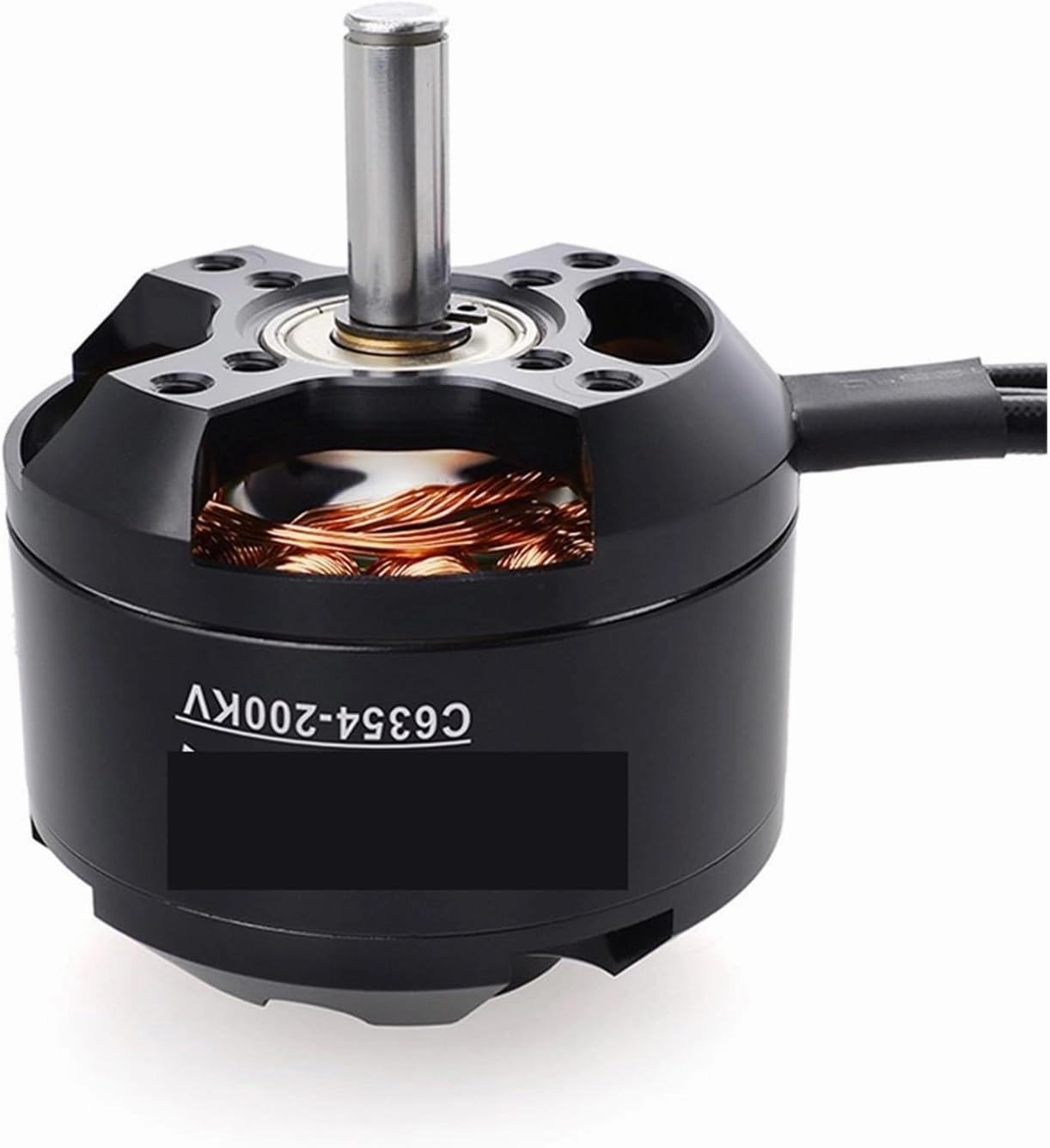

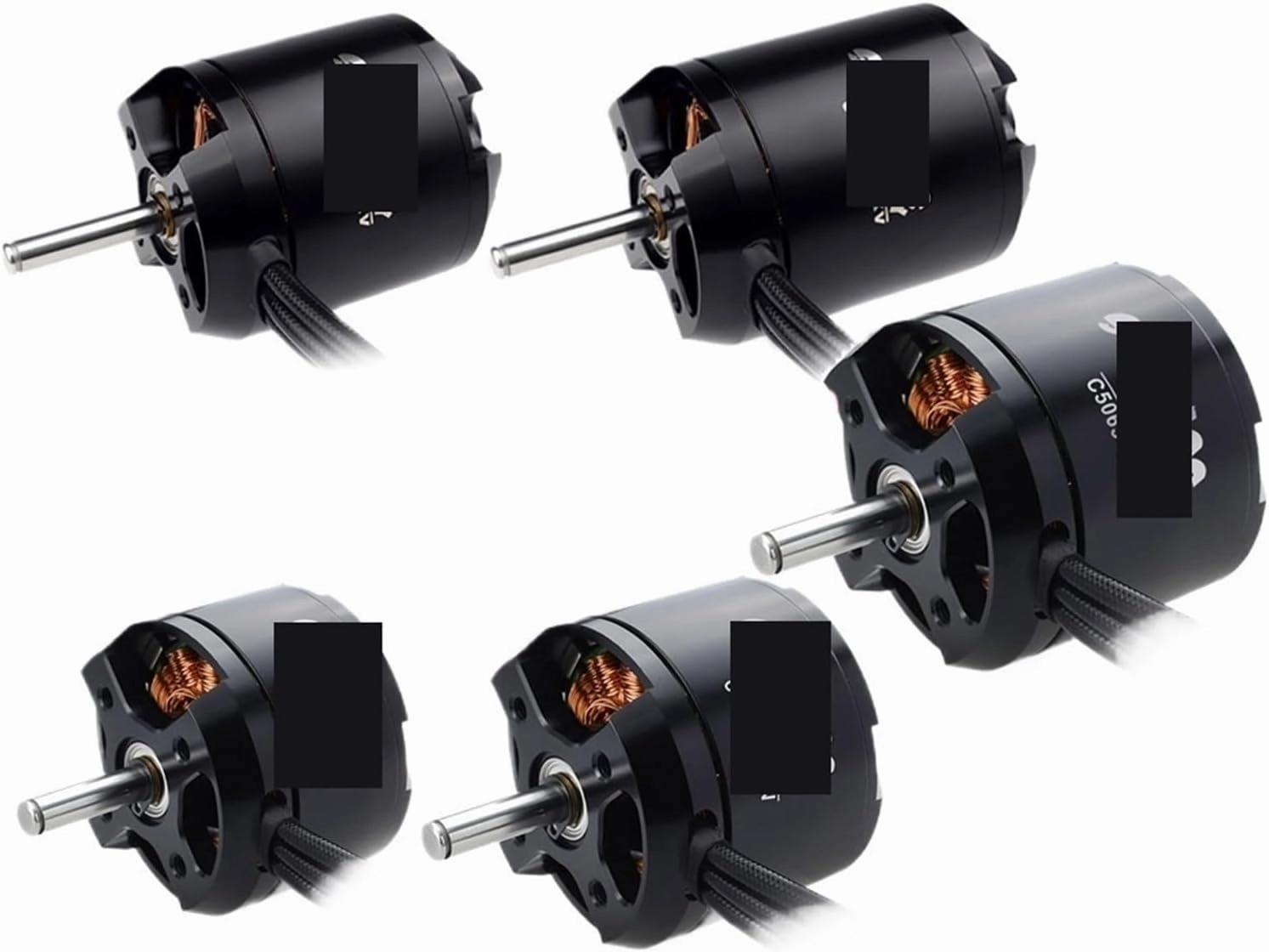

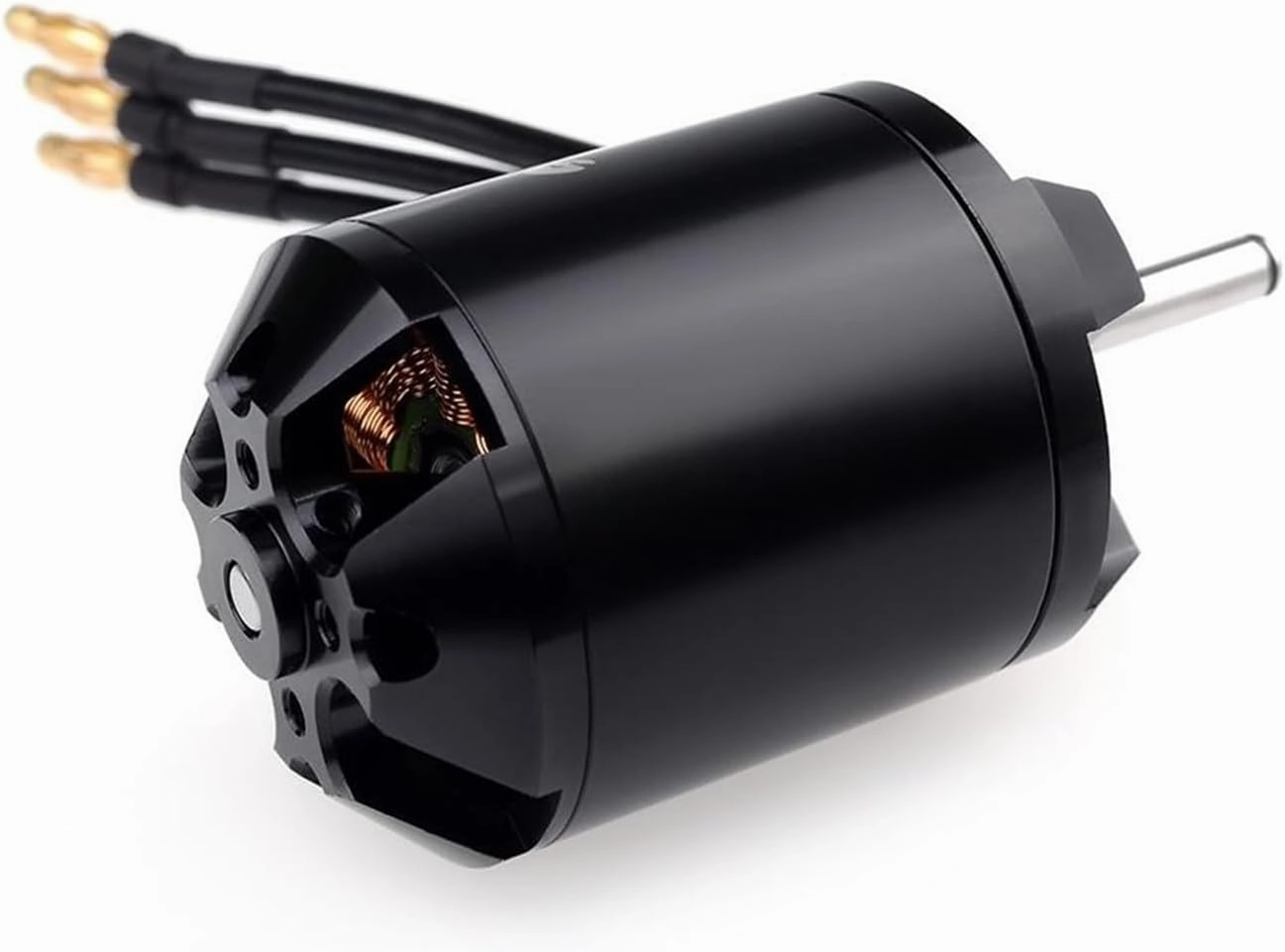

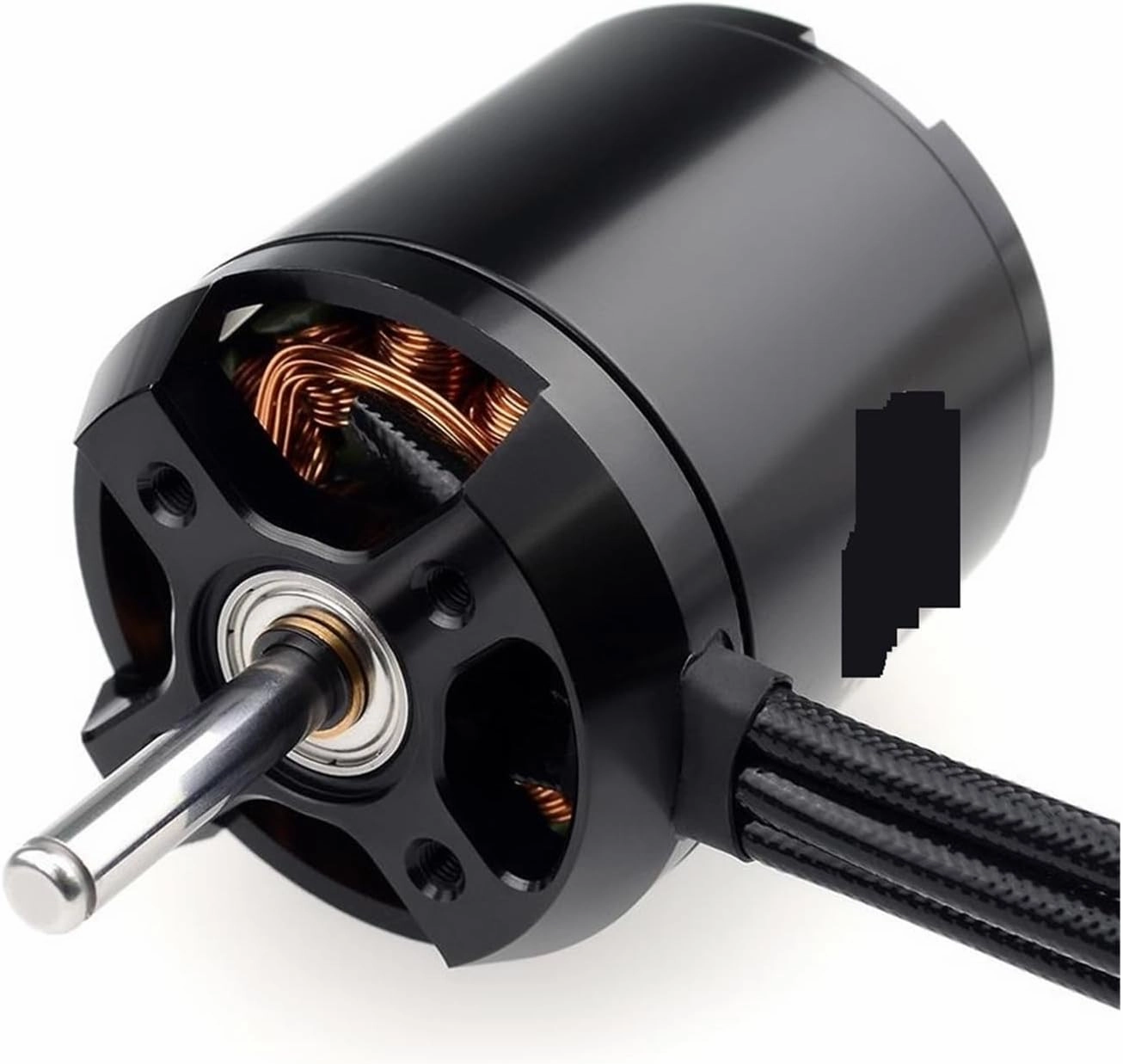

Brushless Motor C4250 C4260 C5045 C5055 C5065 C6354 14Pole with Acc for UAV Aircraft Multicopters RC Plane Helicopter
Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion

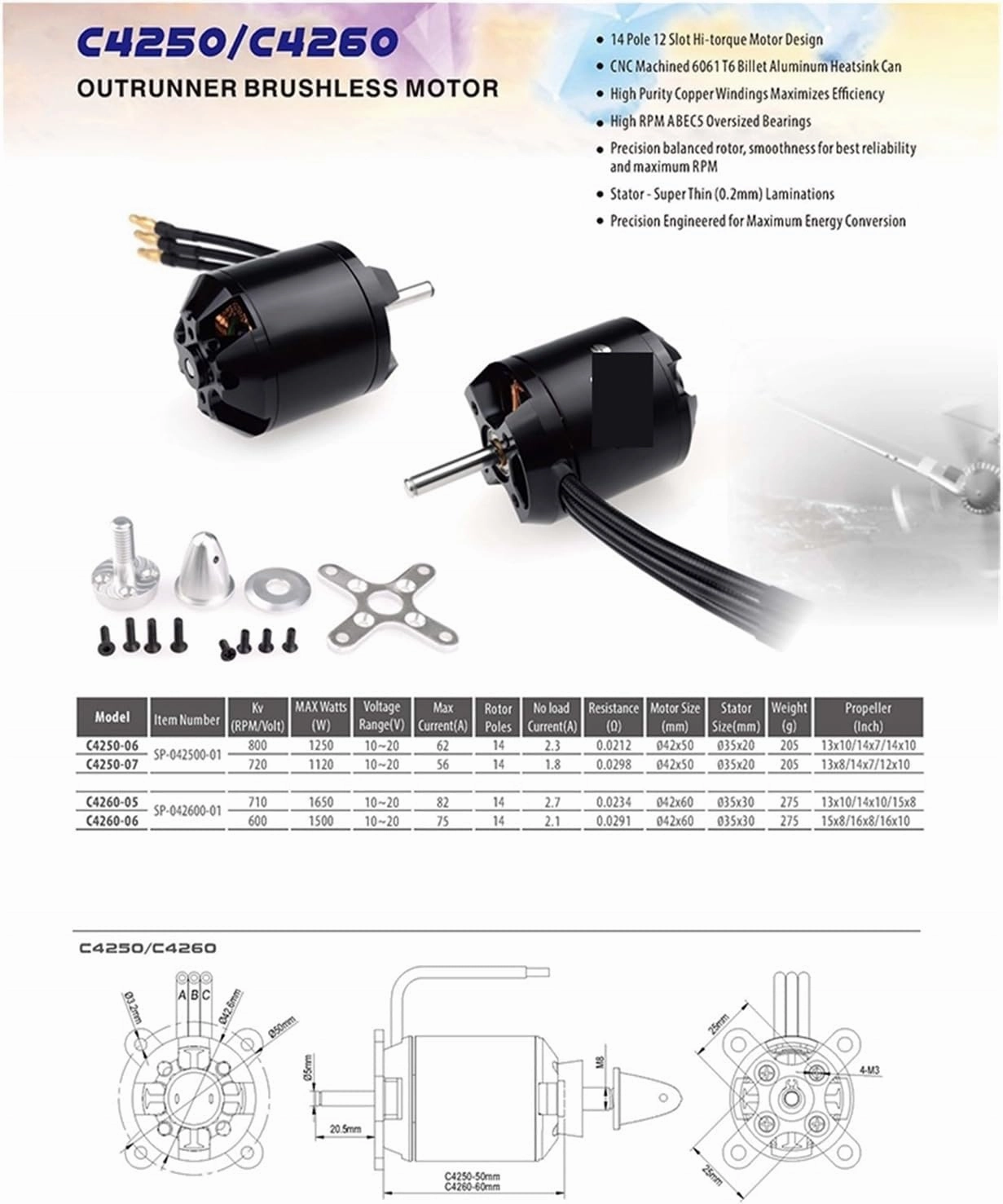

C4250 (3520)
KV: 800KV
Max watts: 1250W
Max Current: 62A
Rotor Poles: 14
No Load current: 2.3A
Resistance: 0.0212
Motor size: 42 x 50
Stator size: 35 x 20
Battery: 2-5S Lipo
Prop(Inch):13*10/14*10/14*7
C4260 (3530)
KV: 600KV
Max watts: 1500W
Max Current: 75A
Rotor Poles: 14
No Load current: 2.1A
Resistance: 0.0291
Motor size: 42 x 60
Stator size: 35 x 30
Battery: 2-5S Lipo
Prop(Inch):15*8/16*8/16*10

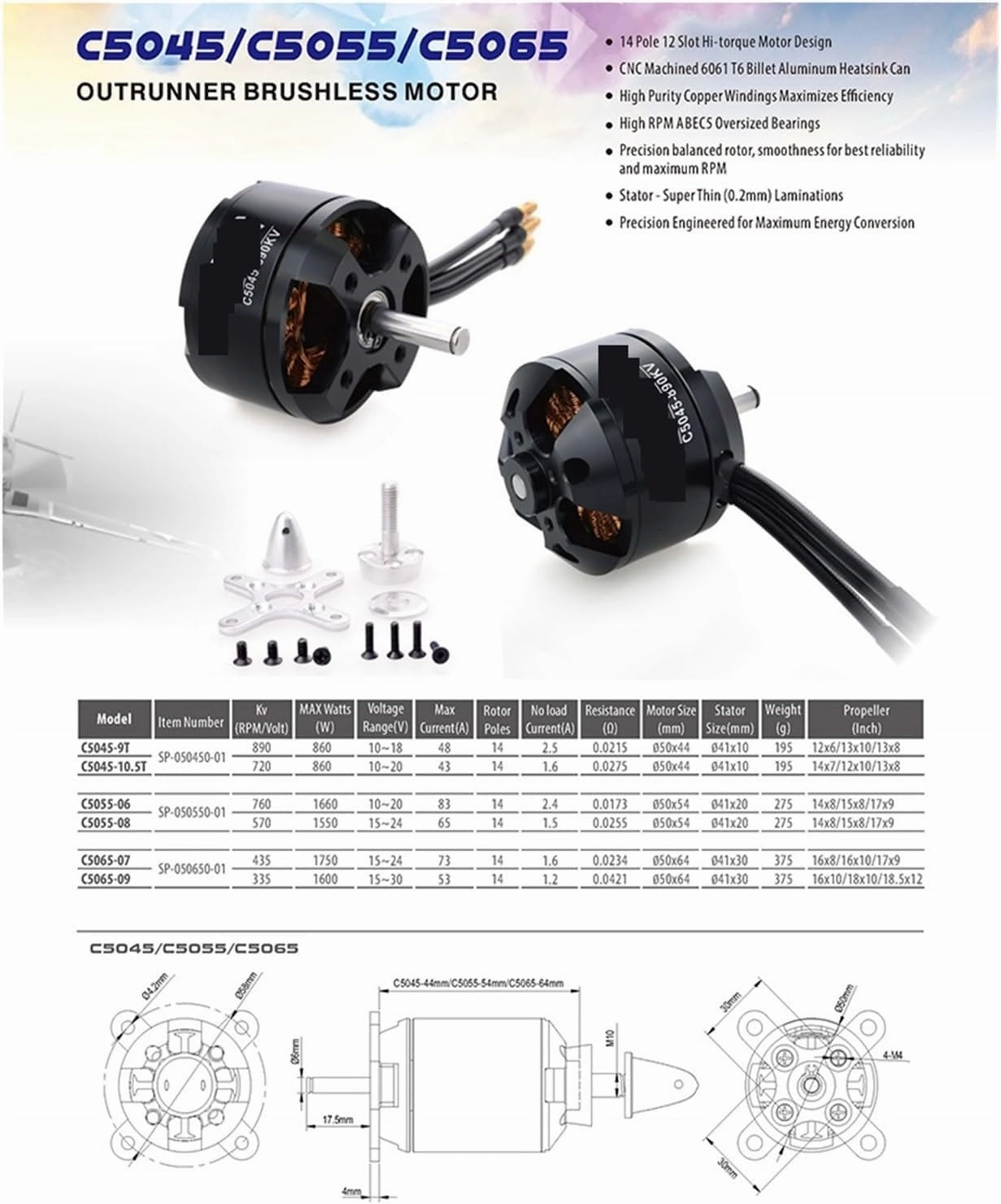

C5045-9T (4110)
KV: 890KV
Max watts: 860W
Max Current: 48A
Rotor Poles: 14
No Load current: 2.5A
Resistance: 0.0215
Motor size: 50 x 45
Stator size: 41 x 10
Battery: 3-5S Lipo
Prop(Inch):12*6/13*10/13*8
C5055 (4120)
KV: 760KV
Max watts: 1660W
Max Current: 83A
Rotor Poles: 14
No Load current: 2.4A
Resistance: 0.0173
Motor size: 50 x 55
Stator size: 41 x 20
Battery: 3-5S Lipo
Prop(Inch):14*8/15*8/17*9
C5065 (4130)
KV: 435KV
Max watts: 1600W
Max Current: 53A
Rotor Poles: 14
No Load current: 1.2A
Resistance: 0.0421
Motor size: 50 x 65
Stator size: 41 x 30
Battery: 3-6S Lipo
Prop(Inch):16*10/18*10/18.5*12
Package listing:
1 x Brushless Motor
1 * Mounting Parts Set
==========
Hign-concerned Chemical : None
Is Electric : No battery
Quantity : 1 pcs
Wheelbase : Upper Shell
Size : C4250 C4260 C5045 C5055 C5065
Technical parameters :
