- Multi Scenario Application: OM3 LC to LC fiber patch cable for 10G/40G ethernet connections for high density application in gigabit ethernet, fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on, 10Gb multimode optic cable for connecting 10G SR, 10G LRM, SFP transceivers, media converters and optical fiber NIC's

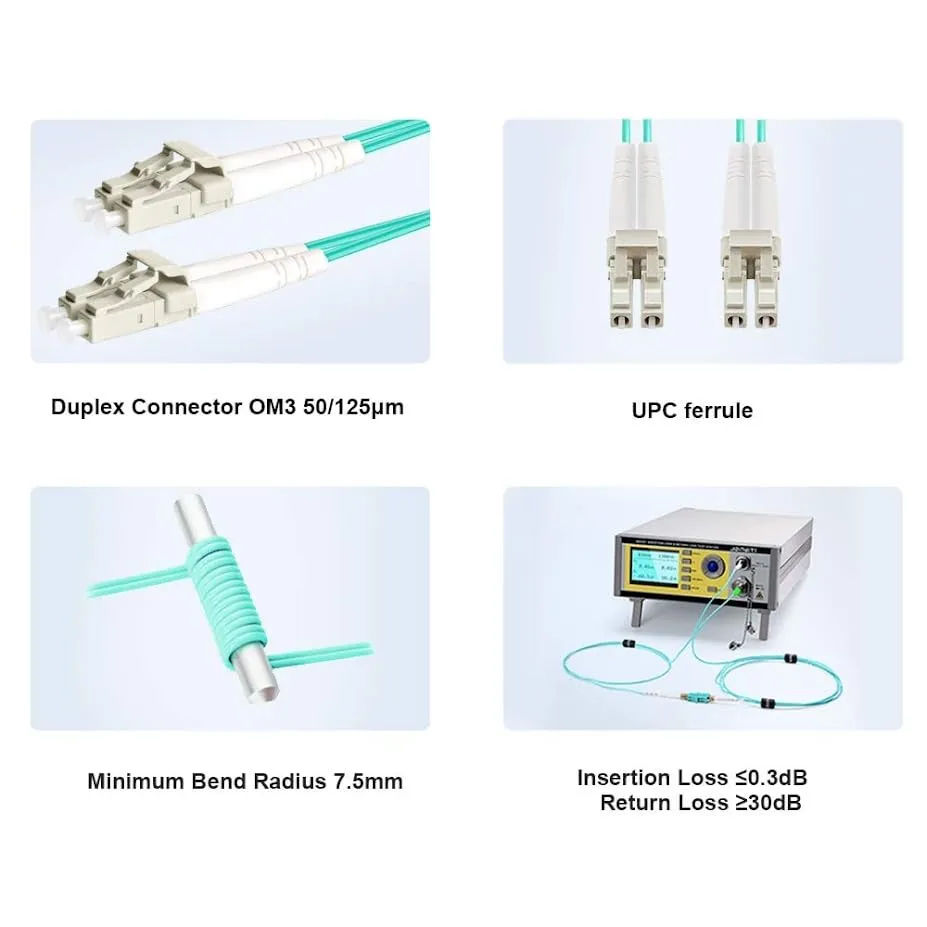

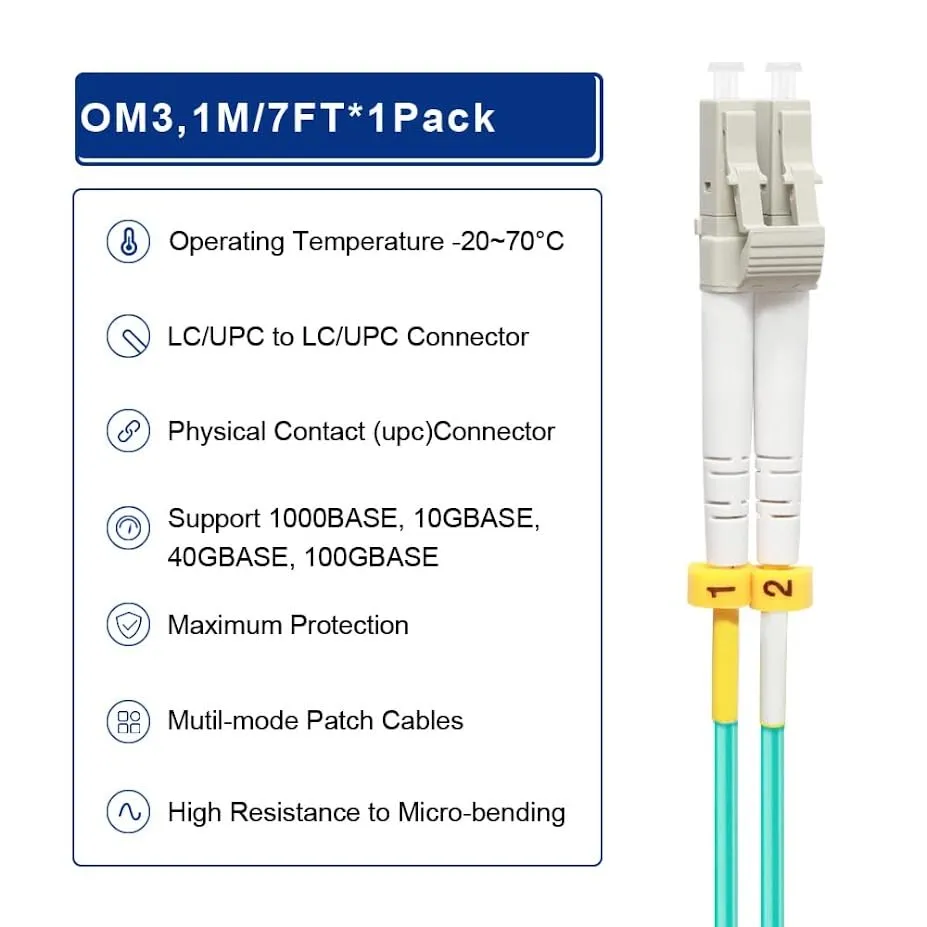

- High Performance Duplex Fiber Cable: low insertion loss ≤0.3(dB) and high return loss ≥30(dB) make sure the stability of transmission. 2.0mm Low Smoke Zero Halogen (LSZH) Jacket can withstand environments ranging from -20 ℃ to 70 ℃
- Bend Insensitive Design: 7.5mm minimum bend radius LC to LC cable suitable for narrow space, , high rated 50/125um fiber and cladding which is more flexible than standard 50 micron fiber cable without introducing any macro-bending loss; ideal for SAN network cabinet that require 20 or more bends in the cabinet or high density installation with cables crammed into an extremely small footprint to interoperable with standard OM3 cabling system

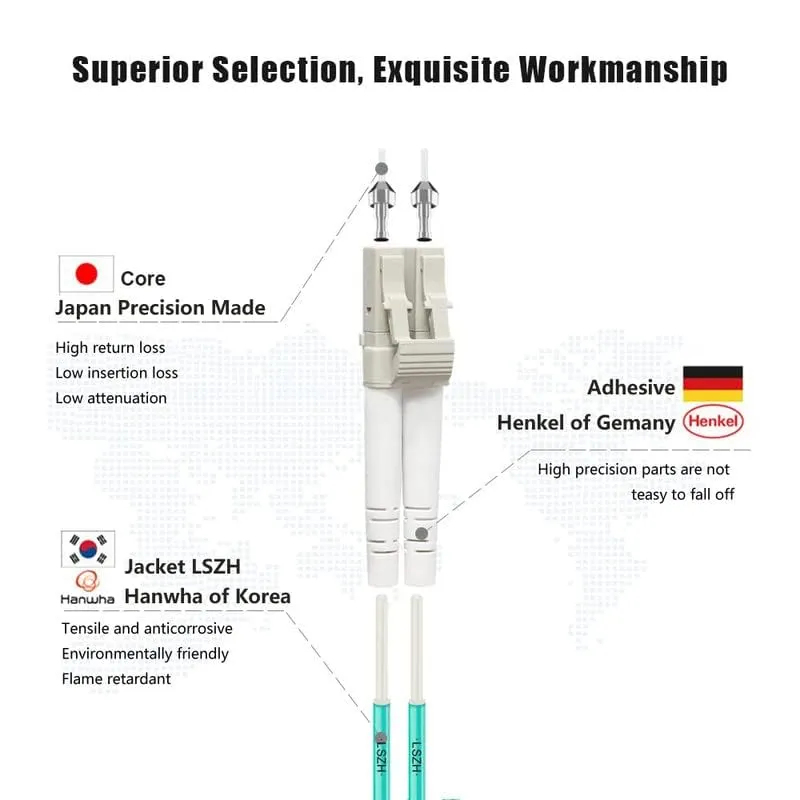

- Maximum Trans Distance: 1Gb Ethernet Distance of 550Meters at 850nm; 10Gb Ethernet Distance of 300Meters at 850nm; 40Gb Ethernet Distance of 300Meters at 850/nm. UPC polish and Japan made zirconia ceramic ferrules provide precise alignment to ensure the signal integrity
- Easy Installation: flexible fiber patch cord with adjustable connector clips and removable dust caps to protect fiber during installation, and embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing and troubleshooting
| 1G/10GB | 10G/40G/100GB | 10G/40G/100GB | 1GB/10GB | 1GB/10GB | 1GB/10GB |
| ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| ≥50dB | ≥30dB | ≥30dB | ≥50dB | ≥50dB | ≥50dB |
| LSZH | LSZH | LSZH | Armored LSZH | Armored LSZH | Armored TPU |
| 16mm | 7.5mm | 7.5mm | 10mm | 7.5mm | 7.5mm |
| 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) |
| G652D | Bend Insensitive | Bend Insensitive | G657A1 | G657A2 | G657A2 |
| Indoor | Indoor | Indoor | Indoor/Outdoor | Outdoor | Outdoor |
| Indoor | Indoor | Indoor | Indoor/Conduit | Overhead/Conduit | Overhead/Direct burial/Conduit |
| 2mm | 2mm | 2mm | 3mm | 5mm | 5mm |
- Package Dimensions : 7.68 x 7.64 x 1.61 inches; 4.97 ounces
- Date First Available : February 12, 2025
- Manufacturer : FLYPROFiber
- Country of Origin : China
