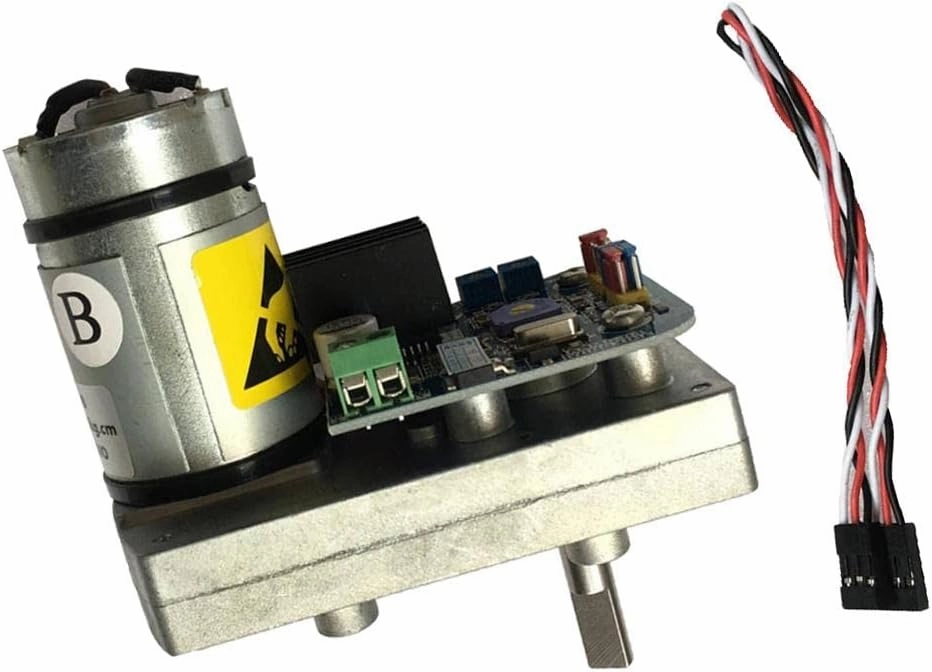

- Potentiometer/Remote Control, Angle/Current Adjustment, Pulse Width 1-2ms, Compatible with Futaba/JR/SANWA/Hitec
- Applicable for Robot/Mechanical Arm, Pulse Signal/Analog Voltage Input, 0-300 Rotation Angle, Weight 530g
- Working Voltage DC12-24V, No Load Current<500mA, Maximum Torque 180kg.cm (24V), Velocity 0.5s/60 (24V)
- Input Mode Remote Controller/SCM, Pulse Signal Input Range 0.5-2.5ms, Voltage Signal Input Range 0-5V, Size 95.5 x 60.5 x 102.6mm
- Motor Output 12-24V, High Quality Steel Gear, Control Accuracy 0.32, Application Robot/Mechanical Arm, DC12V24V Servo
Description:
- Potentiometer control, remote control
- Current adjustment and angle adjustment
- CW and CCW switching, AD&PWM switching, pulse width 1-2ms&0.5-2.5ms
- Compatible with Futaba, JR, SANWA, Hitec, etc.
- Application: Robot, mechanical arm, other high control area
Specification:
- Working Voltage: DC12-24V
- No Load Current:<500mA
- Maximum (Actual Measurement): 180kg.cm (24V); 1764N.cm (24V); 90kg.cm (12V); 882N.cm (12V)
- Velocity: 0.5s/60, 24V; 1.0s/60, 12V
- Rotation Angle: 300 MAX. (0-300, adjustable)
- Input Mode: Pulse signal (remote controller, multi-channel controller, SCM); Analog voltage signal (potentiometer)
- Pulse Signal Input Range: 0.5ms-2.5ms for all "multi channel controller", 1ms-2ms for drone remote controller, SCM program, etc.
- Voltage Signal Input Range: 0-5V
- Control Accuracy: 0.32
- Weight: 530g
- Gear Material: Steel
- Size: 95.5 x 60.5 x 102.6mm
- Power Input: DC12-24V
- Motor 0utput: 12-24V
Package Includes:
1 x Servo
