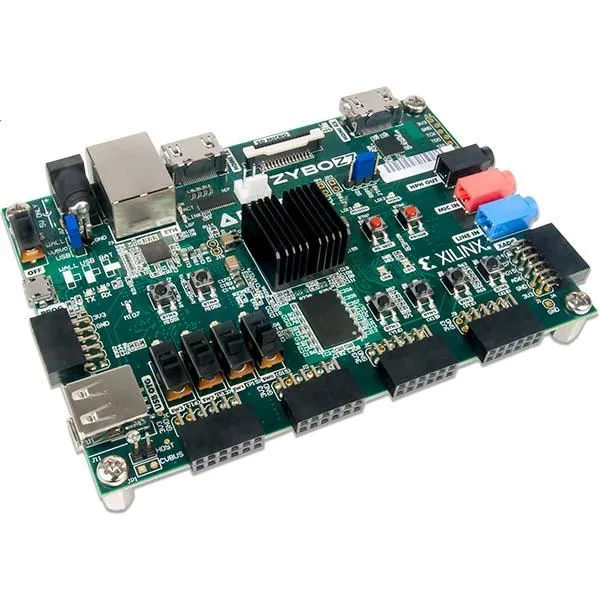

Features:

• ZYNQ Processo
• 667 MHz dual-core Cortex-A9 processor

• DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports

• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO

• Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C

• Programmable from JTAG, Quad-SPI flash, and microSD card

• Programmable logic equivalent to Artix-7 FPGA

• Memory
• 1 GB DDR3L with 32-bit bus @ 1066 MHz

• 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64 compatible identifier

• microSD slot

• Power
• Powered from USB or any 5V external power source

• USB and Ethernet
• Gigabit Ethernet PHY

• USB-JTAG Programming circuitry

• USB-UART bridge

• USB 2.0 OTG PHY with host and device support

• Audio and Video
• Pcam camera connector with MIPI CSI-2 support

• HDMI sink port (input) with CEC (Zybo Z7-20) and without CEC (Zybo Z7-10

• HDMI source port (output) with CEC

• Audio codec with stereo headphone, stereo line-in, and microphone jacks

• Switches, Push-buttons, and LEDs
• 6 push-buttons (2 processor connected)

• 4 slide switches

• 5 LEDs (1 processor connected)

• 2 RGB LEDs

• Expansion Connectors
• 6 Pmod ports (Zybo Z7-20) and 5 Pmod Ports (Zybo Z7-10

• - 8 Total Processor I/O

• - 40 Total FPGA I/O

• - 4 Analog capable 0-1.0V differential pairs to XADC
